Vertiv Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output

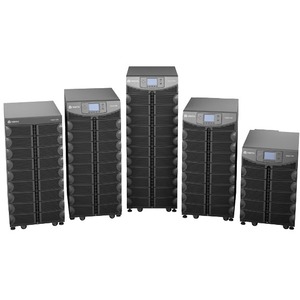

The Vertiv Liebert APS 5kVA Scalable to 15kVA N+1 208V Modular UPS (AS3A0NCUGNNXLKB) is an online double conversion UPS with up to 5 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92%, it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring, a Liebert IntelliSlot Unity Card (IS-UNITY-DP) comes factory installed for FREE Power Insight Software, and enables compatibility with Vertiv environmental monitoring sensors.

More from the Manufacturer

Availability: Call or email

$9,877.23
$9,877.23

Description

Details

Vertiv Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output

OVERVIEW:

  • Limited Warranty : 5 Year
  • Load Capacity (VA) : 5000 VA
  • Package Contents :
    • APS AS3 5kVA Scalable to 15kVA N+1
    • Rack mount kit and hardware
    • USB Cable
    • Safety Manual
    • Quick Installation Guide
  • Environmental Sensors : Humidity Sensor
  • Environmental Sensors : Temperature Sensor
  • Environmental Sensors : Leak Detection Sensor
  • Serial Port : Yes
  • Status Indicators :

    LCD Display

  • Load Capacity (Watt) : 4500 W
  • Height : 27"
  • Software Included : Power Insight 2.2
  • Plug/Connector Type : Hard Wire 3-wire
  • Width : 17"
  • Energy Star : No
  • Network (RJ-45) : No
  • Battery Characteristics : Valve-regulated
  • Input Voltage : 230 V AC
  • Depth : 32"
  • Country of Origin : NA
  • EPO Port : Yes
  • Battery Chemistry : Lead Acid
  • Input Voltage Range : 120 V AC - 280 V AC
  • TAA Compliant : No
  • USB (HID Compliant) Port : Yes
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Input Frequency : 70 Hz
  • Weight (Approximate) : 28.30 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 5 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 14 Minute
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 2
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Application/Usage : Mission Critical Equipment
  • Additional Info

    Additional Info

    SKU 04478AS3A0NCUGNNXLKB-BF
    Weight 28.3000
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number AS3A0NCUGNNXLKB
    Width 17"
    Length 1
    Height 27"
    Product ID 04478AS3A0NCUGNNXLKB
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
