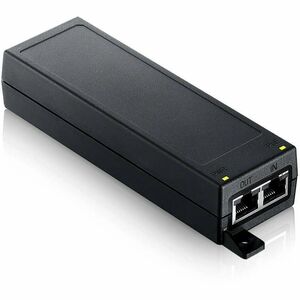

ZYXEL POE12-30W - 2.5G PoE / PoE+ Port with 30 Watt Injector - 230 V AC, 120 V AC Input - 1 x 2.5 Gigabit Ethernet Input Port - 1 x 2.5 Gigabit PoE / PoE+ Output Port - 30 W for IP Cameras, IP Phones, Access Points, Security Access

Higher Network Speed Boosts Network Performance

Zyxel PoE injectors are here to meet the increasing demand for connections to high-speed networking devices such as WiFi 7 and WiFi 6 APs, surveillance PTZ cameras, and advanced POS terminals. The PoE12-30W supports network speeds of up to 2.5Gbps, while both the PoE12-60W* and PoE12-90W support network speeds of up to 10Gbps.

Larger Power Budget Powers More PD Devices

The PoE12-30W complies with the IEEE 802.3at PoE+ standard, while the PoE12-60W and PoE12-90W comply with the IEEE 802.3bt PoE++ standard to provide PoE power budgets of up to 30W, 60W, and 90W, respectively. They ensure interoperability and compatibility with other standard-based PoE-capable devices.

Easy to Use with Robust Protection

These three PoE injectors make it easy to connect network devices without any configuration. The wall-mount and desktop designs accommodate most installation scenarios. They have overload and short circuit protection, which shuts down the power immediately if those issues occur, leaving no damage to your equipment.

Availability: Call or email

$45.94
$45.94
ZYXEL Communications Corp.

Description

Details

ZYXEL POE12-30W - 2.5G PoE / PoE+ Port with 30 Watt Injector - 230 V AC, 120 V AC Input - 1 x 2.5 Gigabit Ethernet Input Port - 1 x 2.5 Gigabit PoE / PoE+ Output Port - 30 W for IP Cameras, IP Phones, Access Points, Security Access

OVERVIEW:

  • Protection Type : Short Circuit
  • Protection Type : Overload Protection
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Package Contents :
    • 2.5G PoE+ Injector
    • Power Cord
  • Input Ports : 1 x 2.5 Gigabit Ethernet
  • Compatibility :

    Zyxel Products:

  • WBE530
  • NWA130BE
  • WAX620D-6E
  • NWA220AX-6E
  • WAX610D
  • WAX510D
  • NWA210AX
  • Output Ports : 1 x 2.5 Gigabit PoE+
  • Certifications & Standards :
  • IEEE 802.3u 100BASEX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3bz 2.5GBASE-T
  • Form Factor : Desktop/Wall Mountable
  • Environmentally Friendly : Yes
  • Maximum Input Current : 1 A
  • Height : 1.2"
  • Width : 5.5"
  • Depth : 1.8"
  • Country of Origin : NA
  • Weight (Approximate) : 5.08 oz
  • Maximum Output Power : 30 W
  • Additional Info

    Additional Info

    SKU 03709POE1230W-BF
    Weight 5.0800
    Is Featured N/A
    Manufacturer ZYXEL Communications Corp.
    Manufacturer Part Number POE12-30W
    Width 5.5"
    Length 1
    Height 1.2"
    Product ID 03709POE1230W
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
