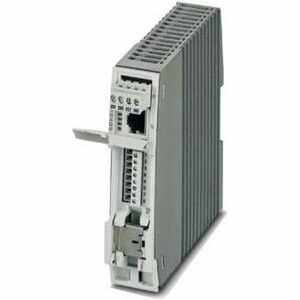

Perle INJ 2101-T DIN Rail PoE Injector - 24 V DC, 48 V DC Input - 1 x RJ-45 Input Port(s) - 40 W - Gray

INJ 2100-T PoE Injectors are DIN Rail mounted single port, PoE mid-span injectors. In environments vulnerable to voltage surges, it acts as an intermediary devices between a non-PoE switch and a PoE device to inject fully compliant power over the Ethernet cable. With electrical isolation of the internal power supply, the INJ-2100-T units are protected against short circuits on the PoE side. The integrated surge protection increases system availability by protecting the connected end devices.

Availability: Call or email

$574.60
$574.60
Perle Systems, Inc

Description

Details

Perle INJ 2101-T DIN Rail PoE Injector - 24 V DC, 48 V DC Input - 1 x RJ-45 Input Port(s) - 40 W - Gray

OVERVIEW:

  • Protection Type : Surge Protection
  • Input Voltage : 48 V DC
  • Input Voltage : 24 V DC
  • Color Family : Gray
  • Input Ports : 1 x RJ-45
  • Product Color : Gray
  • Minimum Output Voltage : 54 V DC
  • Certifications & Standards :
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE802.3bt
    • CE
    • UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
    • UL: Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
    • UL:Class I, Division 2, Groups A, B, C, D
    • UL:CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16
    • EN 61000-4-2
    • EN 61000-4-3
    • EN 61000-4-6
    • IEC 61643-21
    • cULus
    • cUL
  • Form Factor : Din Rail
  • Environmentally Friendly : Yes
  • Height : 5.1"
  • Width : 1.2"
  • Depth : 4.7"
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Weight (Approximate) : 11.45 oz
  • Maximum Output Power : 40 W
  • Additional Info

    Additional Info

    SKU 0281227030118-BF
    Weight 11.4500
    Is Featured N/A
    Manufacturer Perle Systems, Inc
    Manufacturer Part Number 27030118
    Width 1.2"
    Length 1
    Height 5.1"
    Product ID 0281227030118
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
