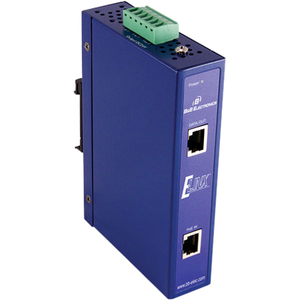

B&B Gigabit POE Splitter, (25W) 24 VDC - 24 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 25 W - DIN Rail/Wall Mountable

EIRP Industrial Unmanaged Power over Ethernet Switches

PoE stands for Power over Ethernet, which is just what it says. Power is transmitted over the Ethernet cable along with the data lines. Each PoE switch has a set of ports that is classified as power source equipment (PSE). These ports can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for a separate power line to be run to each end device.

Availability: Call or email

$112.79
$112.79

Description

Details

B&B Gigabit POE Splitter, (25W) 24 VDC - 24 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 25 W - DIN Rail/Wall Mountable

OVERVIEW:

  • Limited Warranty : Lifetime
  • Input Ports : 1 x 10/100/1000Base-T
  • Output Ports : 1 x 10/100/1000Base-T
  • Certifications & Standards :
    • UL
    • cUL 508
    • CE
    • EN60950-1
    • CE EN61000-6-2
    • CE EN61000-6-4
    • CE EN61000-4-2 (ESD)
    • CE EN61000-4-3 (RS)
    • CE EN61000-4-4 (EFT)
    • CE EN61000-4-6 (CS)
    • CE EN61000-4-8 (Magnetic Field)
    • IEC60068-2-32
    • IEC60068-2-27
    • IEC60068-2-6
  • Maximum Output Voltage : 24 V DC
  • Environmentally Friendly : Yes
  • Mount Type : DIN Rail/Wall Mountable
  • Height : 5.5"
  • Width : 1.2"
  • Depth : 3.7"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : NA
  • Weight (Approximate) : 1.45 lb
  • Maximum Output Power : 25 W
  • Additional Info

    Additional Info

    SKU 01074EPSG202-BF
    Weight 1.4500
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EPSG202
    Width 1.2"
    Length 1
    Height 5.5"
    Product ID 01074EPSG202
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
