StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - HDMI KVM Extender over IP transmitter & receiver kit remotely controls KVM switch/console or PC from up to 330ft/1

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

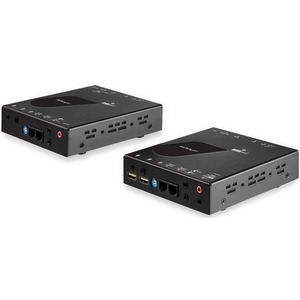

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$661.80
$661.80
StarTech.com

Description

Details

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - HDMI KVM Extender over IP transmitter & receiver kit remotely controls KVM switch/console or PC from up to 330ft/100m over Cat5e/6 Ethernet network cable/IP enabled LAN - 4K UHD 30Hz /EDID Passthrough/USB2.0 HID/ Large Signage Display or Video Wall

OVERVIEW:

  • Limited Warranty : 2 Year
  • Graphic Mode : 4K
  • Connectivity Technology : Wired
  • Input Voltage : 240 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Package Contents :
    • 1 x Transmitter Unit
    • 1 x Receiver Unit
    • 2 x Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
    • 2 x Mounting Kits
    • 2 x Ethernet Cables
    • 2 x DB9 Serial Adapters
    • 2 x RJ11 Serial Cables
    • 1 x HDMI Cable (1.2 m)
    • 1 x USB Cable (1.5 m)
    • 8 x Rubber Feet
    • 1 x Plastic Screwdriver
    • 1 x Quick-Start Guide
  • Maximum Video Resolution : 3840 x 2160
  • Input Voltage Range : 100V AC to 240V AC
  • Product Color : Black
  • Network (RJ-45) : Yes
  • Number of Computers Supported : 1
  • Power Consumption : 18 W
  • Environmentally Friendly : Yes
  • Form Factor : Desktop
  • USB : Yes
  • Number of Remote Users Supported : 1
  • Transmitter Height : 1.10"
  • Maximum Operating Distance : 330 ft
  • Transmitter Width : 4.60"
  • Transmitter Depth : 5.10"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Receiver Height : 1.10"
  • Country of Origin : Taiwan
  • Receiver Width : 4.60"
  • TAA Compliant : Yes
  • HDMI : Yes
  • Receiver Depth : 5.10"
  • Transmitter Weight (Approximate) : 1.34 lb
  • Receiver Weight (Approximate) : 1.34 lb
  • Number of HDMI Ports : 2
  • Number of Network (RJ-45) Ports : 2
  • Number of USB Ports : 5
