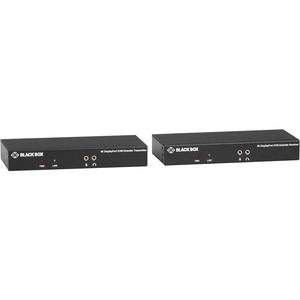

Black Box KVXLCDPF-100 KVM Extender - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant

The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Availability: Call or email

$612.39
$612.39
Black Box Corporation

Description

Details

Black Box KVXLCDPF-100 KVM Extender - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant

OVERVIEW:

  • Limited Warranty : 2 Year
  • Graphic Mode : 4K
  • Connectivity Technology : Wired
  • Input Voltage : 5 V DC
  • Package Contents :
    • 1 x Transmitter
    • 1 x Receiver
    • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
    • 1 x DisplayPort Cable, M/M 1.2m (4 ft.)
    • 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
    • 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
    • 2 x Deskmounting brackets (with screws)
  • Maximum Video Resolution : 3840 x 2160
  • Number of Computers Supported : 1
  • Rack Height : 1U
  • Environmentally Friendly : Yes
  • Number of Local Users Supported : 1
  • Form Factor : Rack-mountable
  • USB : Yes
  • Transmitter Height : 0.83"
  • Maximum Operating Distance : 32808.40 ft
  • Transmitter Width : 3.27"
  • Transmitter Depth : 7.09"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Headphone : Yes
  • Device Type : KVM Extender
  • Receiver Height : 0.83"
  • Country of Origin : Taiwan
  • Microphone : Yes
  • Receiver Width : 3.27"
  • TAA Compliant : Yes
  • Receiver Depth : 7.09"
  • Transmitter Weight (Approximate) : 13.28 oz
  • DisplayPort : Yes
  • Number of USB Ports : 5
  • Additional Info

    Additional Info

    SKU 01312KVXLCDPF100-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number KVXLCDPF-100
    Width 1
    Length 1
    Height 1
    Product ID 01312KVXLCDPF100
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
