StarTech.com 2S1P PCI Express Serial Parallel Combo Card - Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot - PCI Express Serial Parallel Card - PCIe Serial Parallel Combo Card Adapter - 2 Port Serial and 1 P

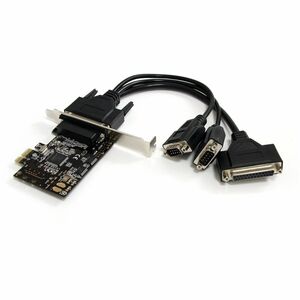

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$43.08
$43.08
StarTech.com

Description

Details

StarTech.com 2S1P PCI Express Serial Parallel Combo Card - Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot - PCI Express Serial Parallel Card - PCIe Serial Parallel Combo Card Adapter - 2 Port Serial and 1 Port Parallel - Comes with Breakout Cable - Dual Profile - SPP EPP ECP

OVERVIEW:

  • Limited Warranty : Lifetime
  • Host Interface : PCI Express x1
  • Package Contents :
    • 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
    • 1 x Full Profile Bracket
    • 1 x Driver CD
    • 1 x Instruction Manual
  • Form Factor : Plug-in Card
  • Environmentally Friendly : Yes
  • Platform Supported : Mac
  • Platform Supported : PC
  • Card Height : Low-profile
  • Number of Parallel Ports (External) : 1
  • Height : 3.1"
  • UART Type : 16C550
  • UART Type : 16C450
  • Width : 0.9"
  • Number of Serial Ports (External) : 2
  • Parallel Port Modes : ECP
  • Parallel Port Modes : EPP
  • Parallel Port Modes : SPP
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Weight (Approximate) : 7.90 oz
  • Country of Origin : NA
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 03243PEX2S1P553B-BF
    Weight 7.9000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number PEX2S1P553B
    Width 0.9"
    Length 1
    Height 3.1"
    Product ID 03243PEX2S1P553B
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
