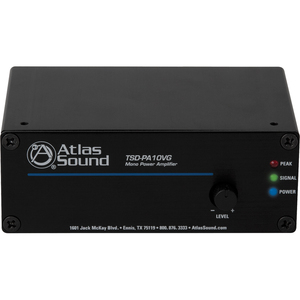

AtlasIED TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black - 0.5% THD - 40 Hz to 20 kHz - 14 W

The TSD-PA10VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).

Availability: Call or email

$154.53
$154.53

Description

Details

AtlasIED TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black - 0.5% THD - 40 Hz to 20 kHz - 14 W

OVERVIEW:

  • Minimum Frequency Response : 40 Hz
  • Input Voltage : 24 V DC
  • Package Contents :
    • TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
    • Velcro
    • 2 x Brackets
    • 2 x Cable Retainer
  • Audio Channels : 1
  • Maximum Frequency Response : 20 kHz
  • Operating Power Consumption : 14 W
  • Product Color : Black
  • RMS Output Power : 10 W
  • Total Harmonic Distortion (THD) : 0.5%
  • Height : 1.5"
  • Impedance : 4 Ohm
  • Width : 4"
  • Energy Star : Yes
  • Depth : 2.8"
  • Country of Origin : NA
  • Weight (Approximate) : 6 oz
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 04385TSDPA10VG-BF
    Weight 6.0000
    Is Featured N/A
    Manufacturer AtlasIED
    Manufacturer Part Number TSD-PA10VG
    Width 4"
    Length 1
    Height 1.5"
    Product ID 04385TSDPA10VG
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
